The four principles that should be followed when purchasing rubber packaging machines and hydraulic packaging machines are worth the attention of rubber machine procurement personnel. Rubber processing enterprises generally have the following principles when choosing rubber packaging machines:

First, the principle of combining the applicability and progressiveness of the hydraulic packer to meet the process requirements and ensure the output and quality

Secondly, large rubber processing plants should choose equipment with high mechanization and continuity, such as automatic packaging machines; Small factories choose relatively simple hydraulic packaging machines. To meet one's own conditions and requirements, there is no need to blindly pursue high performance. It is important to purchase a rubber packaging machine that suits one's own needs.

The third is that the selected hydraulic packaging machine has simple operation, low energy consumption, high efficiency, convenient maintenance, and high cost-effectiveness.

The fourth is that the rubber packaging machine has a reasonable structure and its mechanical performance can adapt to various working conditions (temperature, humidity, pressure, etc.).

The above are the four principles that rubber processing enterprises should follow when purchasing rubber packaging machines and hydraulic packaging machines.

Guangdong Zhenghe Machinery, a rubber packaging machine manufacturer, provides rubber packaging machines, rubber packaging machine prices, rubber packaging machine technology consulting, rubber packaging machine quotations. Welcome to inquire by phone. Glue loading, packaging, unloading, and packaging machine

Working principle of rubber packaging machine

Zhenghe Machinery Rubber Packaging Machine Manufacturer. The rubber packaging machine is a hydraulic rubber packaging machine, consisting of a frame, packaging box, main oil cylinder, pressure head, and control box. It uses the thrust of the main oil cylinder to automatically press the specified mass of particle standard rubber into tight rubber blocks according to the set program. Hydraulic pressure rises through the piston to the appropriate pressure to compact the rubber, thereby achieving the function of a standardized rubber package.

This machine adopts advanced hydraulic system and PLC integrated electrical control system, which is convenient, safe, reliable, easy to maintain, and has stable product quality and performance. It is a rubber packaging machinery.

[Application of Rubber Packaging Machine]

The rubber hydraulic packaging machine is mainly used in the packaging section of natural rubber production. It uses the pressure of liquid to compress the particles (film) rubber, thereby obtaining the same size and specification of rubber bags for packaging and transportation. The rubber bags packaged by this machine have the characteristics of non rebound and uniform size. The packaged rubber bags can be reduced by about 40% compared to the original volume, greatly saving transportation, packaging and other costs.

Technical parameters of rubber packaging machine

The hydraulic packaging machine is an auxiliary box cover rotating four column hydraulic packaging machine, equipped with a set of packaging boxes for standard rubber packaging, and customized packaging boxes according to customer requirements.

Rubber packaging machine and hydraulic packaging machine

Rubber packaging machine and hydraulic packaging machine

Rubber packaging machine specifications

Rubber packaging machine model: YDB-1000 YDB-1000K

Packing Box Specification (mm) for Rubber Packaging Machine: 600 * 400 * 450/680 * 350 * 450/600 * 400 * 450/680 * 350 * 450

Rubber packaging machine motor power (kw): 11/18.5

Rubber packaging machine production capacity (kg/h): 2000/3500

External dimensions of rubber packaging machine (length * width * height) Dimension (L * W * H): 2900 * 1300 * 2600/1300 * 1100 * 1300/2900 * 1300 * 2600/1650 * 1300 * 1000

Rubber packaging machine weight (kg): 5500/6000

Specification chart of rubber packaging machine

Please click on the rubber packaging machine model in the chart above to inquire about detailed packaging machine information

Rubber packaging machine, hydraulic packaging machine, automatic packaging machine

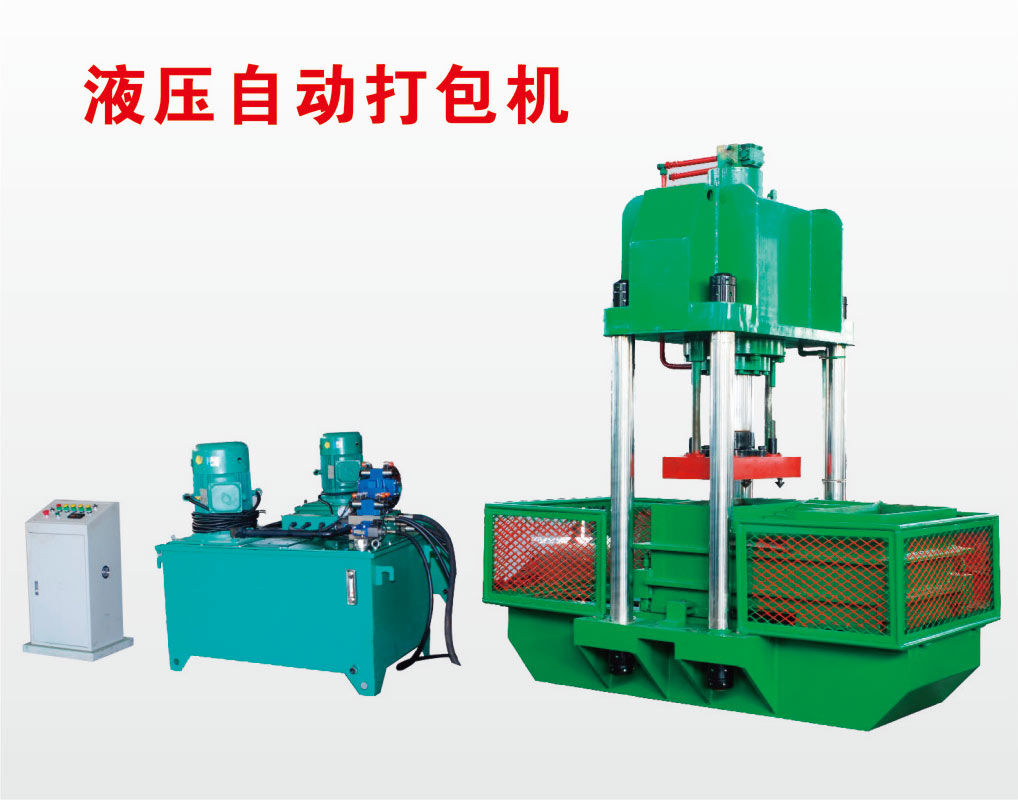

Rubber packaging machine/Hydraulic packaging machine picture/Automatic packaging machine

Hydraulic automatic packaging machine type:

Hydraulic automatic packaging machine brand:

Hydraulic automatic packaging machine model:

Principle of hydraulic automatic packaging machine:

Application of hydraulic automatic packaging machine:

Hydraulic automatic packaging machine parameters:

Main features of hydraulic automatic packaging machine:

The above is the relevant content of Guangdong Zhenghe Machinery Network on the four principles that should be followed when purchasing rubber packaging machines and hydraulic packaging machines. If you want to learn more about the exploration, design, production, production, installation, debugging, maintenance, and repair of rubber processing equipment and sugarcane sugar making equipment, please feel free to contact the business specialist of Guangdong Zhenghe Machinery Co., Ltd. via WeChat or phone. Zhenghe Machinery will warmly serve you. Service hotline: 13824803990, 0759-3363353; WeChat ID: 13828211689
